Sintered NdFeB magnets

Quantity:
SKU: 3932667301
Model: 4697774477

{{ variable.name }}

{{ value.name }}
Product Details

Product Specification

Type45SH Segment magnetModel45SH OR32.5 × IR29 × H24.9 × 60°
ParamsBr>1.33T Hcb>995kA/m Hcj>1592kA/m Hk/Hcj>95% (BH)max: 342~366kJ/m3 Max Working Temperature: 150℃MaterialNdFeB (neodymium-iron-boron) sintered material
Applicable Industry1. Permanent magnet BLDC motors for industrial pumps 2. Servo motors for automation equipment 3. High-efficiency electric generators 4. HVAC fan motors 5. Electric vehicle auxiliary motors 6. Compressor motors for refrigeration

Feature

1. Grade N45SH, maximum continuous operating temperature up to 150°C, strong resistance to demagnetization. 2. Standard segment size OR32.5 × IR29 × H24.9 × 60°, diametrally magnetized, well matched for permanent magnet motor assembly. 3. Strict dimensional tolerance ±0.1mm, consistent arc profile for smooth rotor fitting. 4. Ni-Cu-Ni coating as standard, outstanding anti-corrosion performance for long service life. 5. Stable magnetic flux uniformity, low motor cogging torque for high efficiency operation. 6. Mature mass production process, reliable batch consistency for industrial projects.

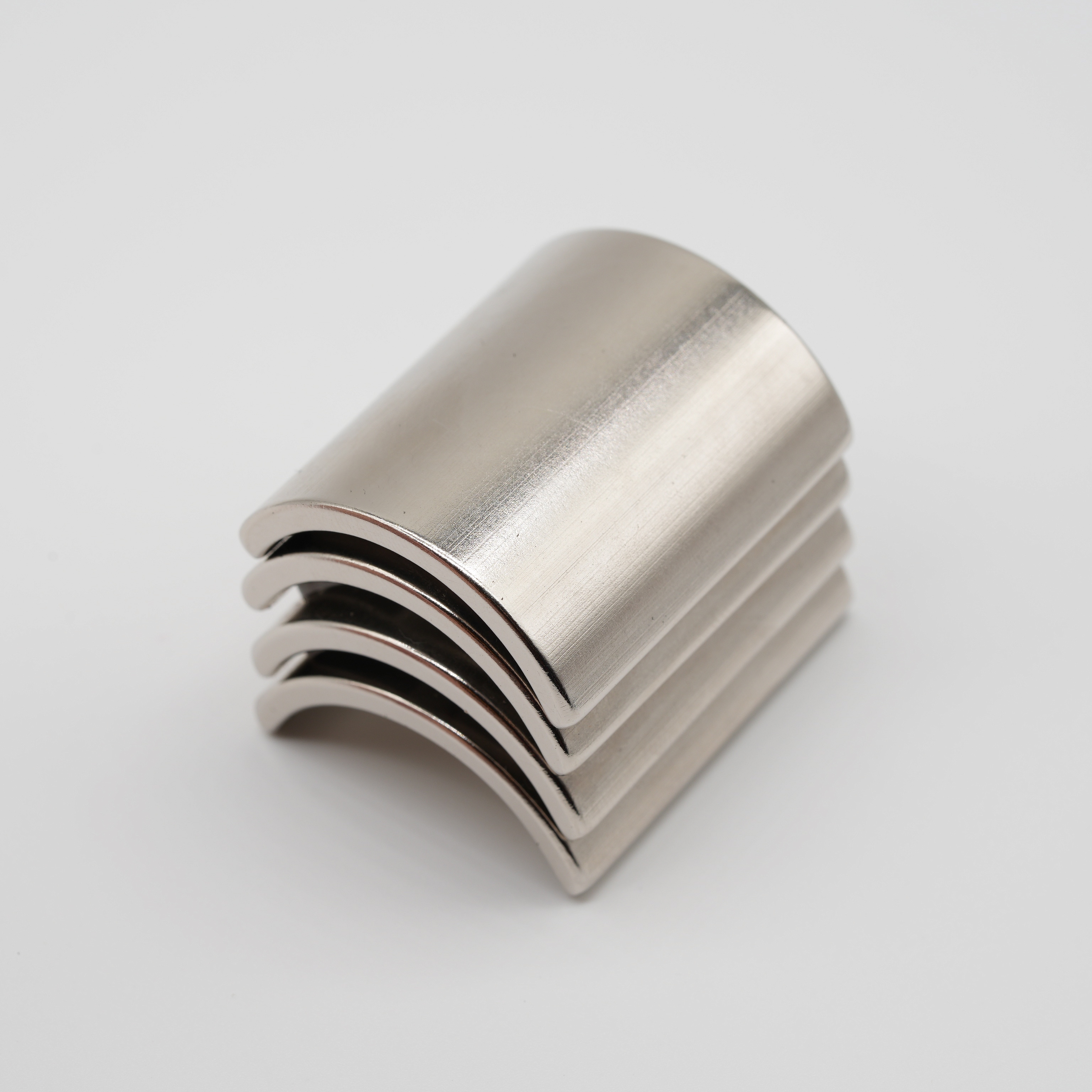

45SH ARC Magnet NICUNI

45SH ARC Magnet NICUNI


45SH ARC Magnet

45SH ARC Magnet

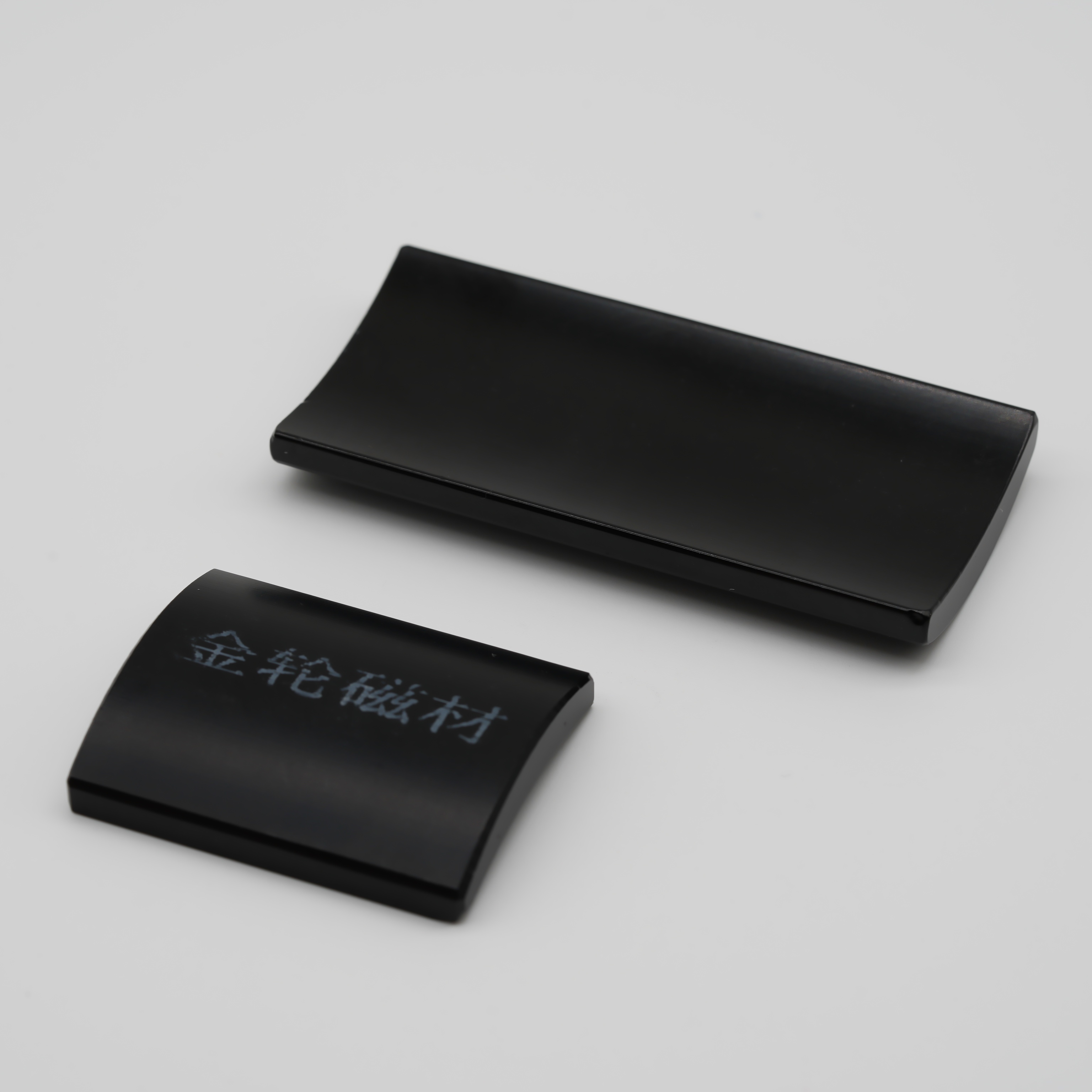

45SH ARC Magnet EPOXY

45SH ARC Magnet EPOXY
